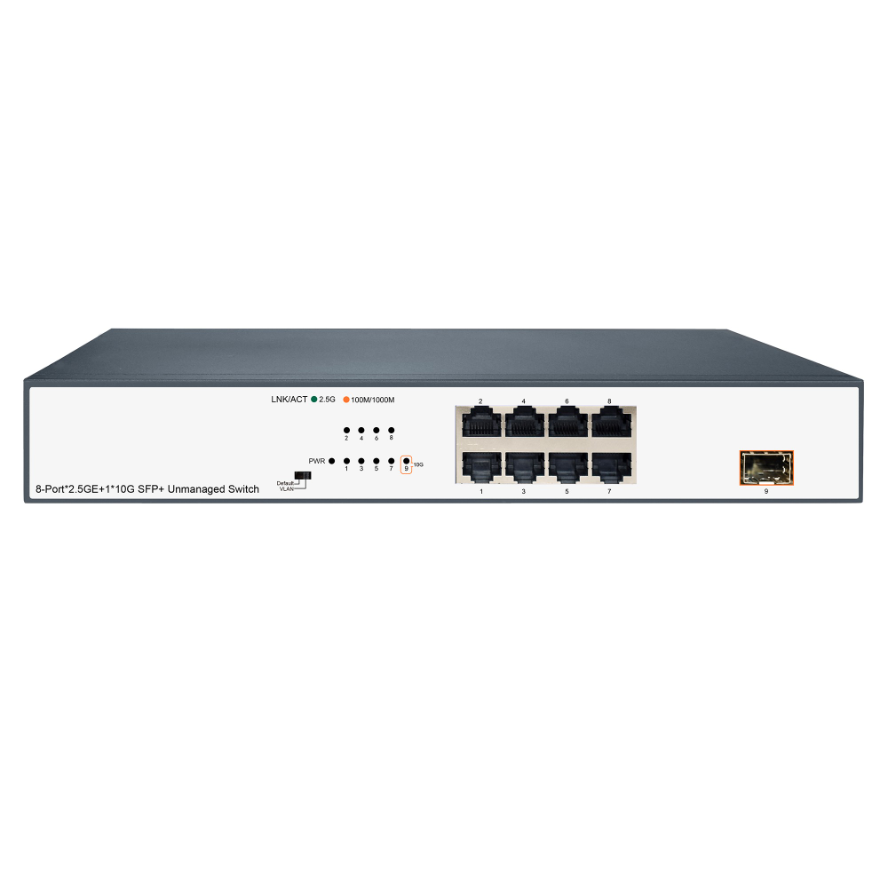

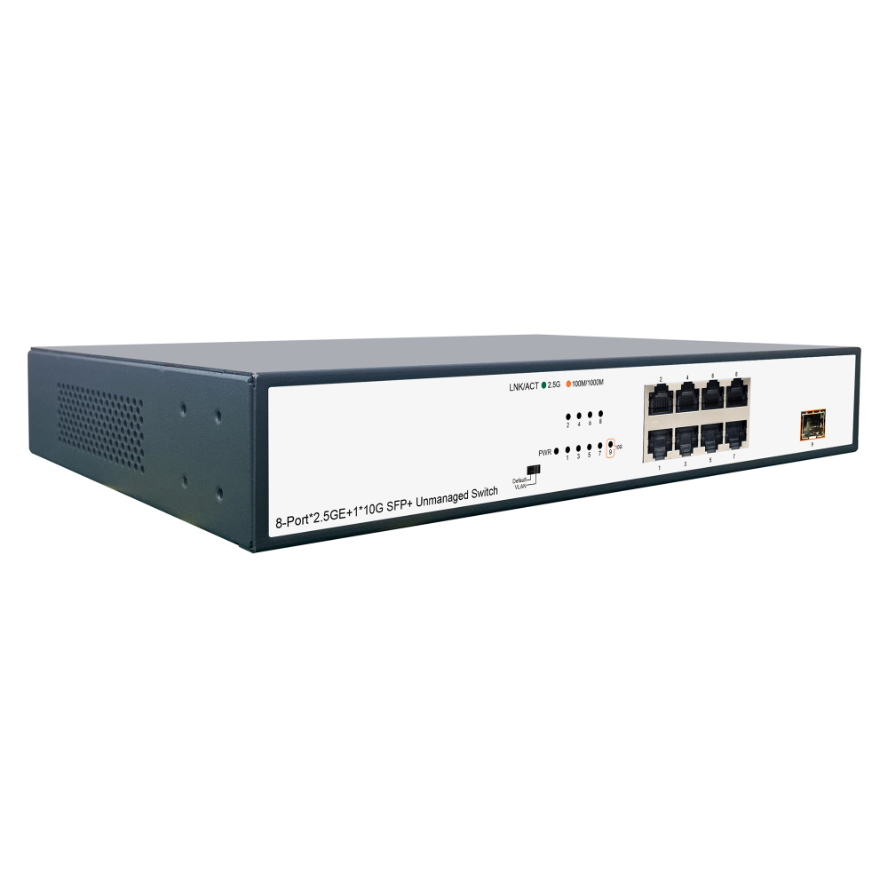

8-Port*2.5GE+1*10G SFP+ Switch

Model NO：PT3210GMS-V3

The PT3210GMS-V3 provides 8*100/1000/2500Mbps adaptive RJ45 ports and 1*1/10Gbps SFP+ fiber module expansion slot to flexibly expand your network. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. Adopt store-and-forward technology to ensure effective bandwidth allocation to each port, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras, widely used in SMEs, hotels and campus network convergence, core and other application scenarios.

Product features

  • RJ45 supports port auto-flip (Auto MDI/MDIX);
  • Support VLAN function;
  • 10 Gigabit uplink port compatible with 1000Mbps transmission rate;
  • Panel lights monitor operating status and assist in failure analysis;
  • Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  • Use 10 Gigabit optical modules, including SR/LR/LRM/ER/ZR models;
  • Support Ethernet Energy Efficiency (EEE) function (IEEE802.3az);
  • Operating temperature: 0°C ~ 40 °C;

Product Overview

The PT3210GMS-V3 provides 8*100/1000/2500Mbps adaptive RJ45 ports and 1*1/10Gbps SFP+ fiber module expansion slot to flexibly expand your network. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. Adopt store-and-forward technology to ensure effective bandwidth allocation to each port, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras, widely used in SMEs, hotels and campus network convergence, core and other application scenarios.

Product Features

  • RJ45 supports port auto-flip (Auto MDI/MDIX);
  • Support VLAN function;
  • 10 Gigabit uplink port compatible with 1000Mbps transmission rate;
  • Panel lights monitor operating status and assist in failure analysis;
  • Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  • Use 10 Gigabit optical modules, including SR/LR/LRM/ER/ZR models;
  • Support Ethernet Energy Efficiency (EEE) function (IEEE802.3az);
  • Operating temperature: 0°C ~ 40 °C;

Ordering information

Model PT3210GMS-V3
Product Information 8-Port*2.5GE+1*10G SFP+ Switch
